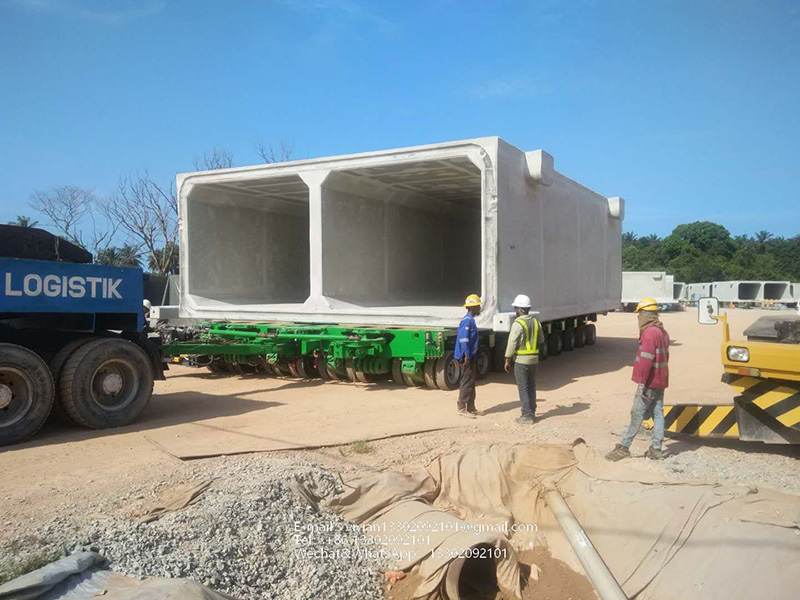

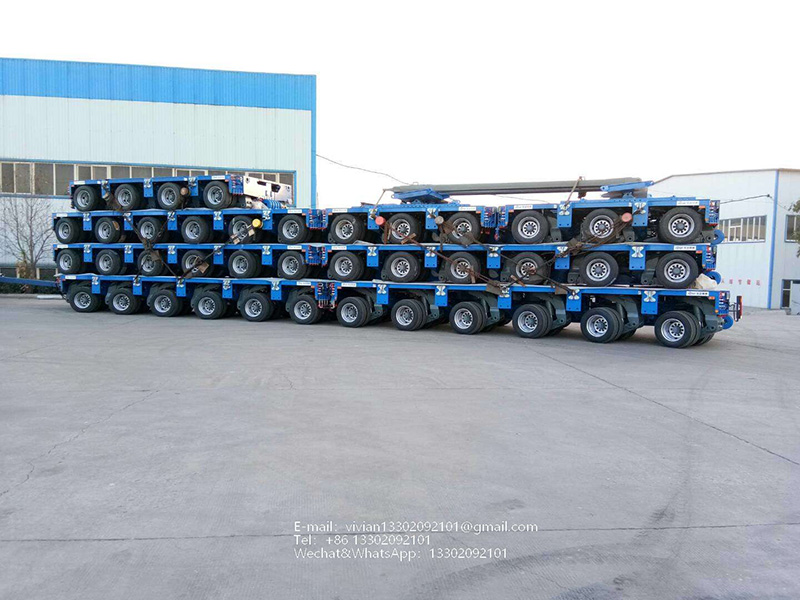

hydraulic modular trailer
45Tons per axle, axle space 1500mm, width 2990mm, height 1175±300mm, Min height 875mm,compatible with German Goldhofer THPSL/High bending moment with strong high tensile steel Q690E, can do concentrated heavy loading, box shape frame, 600mm hydraulic suspension with slew bearing, per axle line capacity is 45Tons. Can do 2 axle, 3 axle, 4 axle, 5 axle, 6 axle, each modular unit trailer can combine longitudinal and lateral.

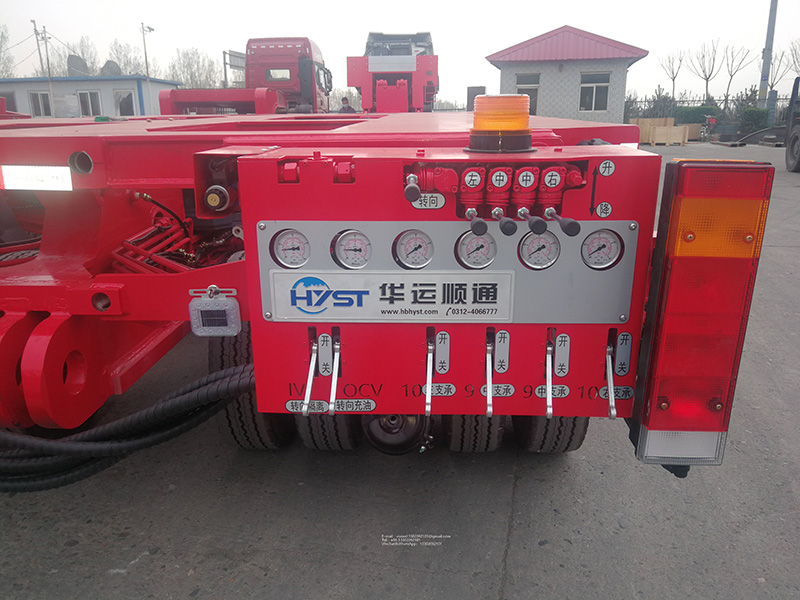

This modular trailer is specialized design for heavy transportation with hydraulic steering, hydraulic suspension, easy to operate and can provide the best solution for mega move. Global Tralier Home keep manufacture a series of combinable transport modules with 2-6 axle lines for off-road and on-road operations. The modular vehicles are equipped with 215/75 R17.5 twin tyres and are available in a basic width of 3,000 mm.
High bending moment with strong high tensile steel Q690E, can do concentrated heavy loading, box shape frame, 600mm hydraulic suspension with slew bearing, per axle line capacity is 45Tons. Can do 2 axle, 3 axle, 4 axle, 5 axle, 6 axle, each modular unit trailer can combine longitudinal and lateral. It is very flexible for heavy transportation with different combination modular trailer.
Extremely low dead weight 3.7 tons per axle line
2. Axle spacing 1500mm, Axle compensation 600mm
3. Higher lateral stability, normal 3meters can load on flat rack for shipping
4. Twin Tires 215/75R 17.5, Axle load 45Tons at 1km/h
5. Vehicle width 3000mm, Max Steering angle ±55°
 |  |  |  |
| 1 axle modulestrailer | 2 axle modulestrailer | 4 axle modulestrailer | 5 axle modulestrailer |
 | |||
