hydraulic modular trailer

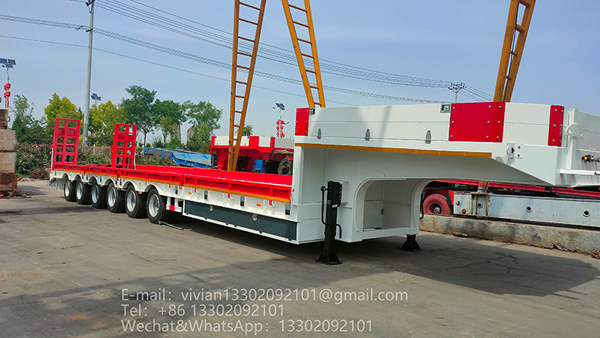

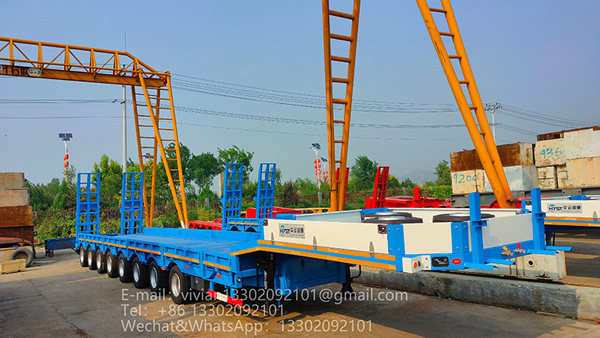

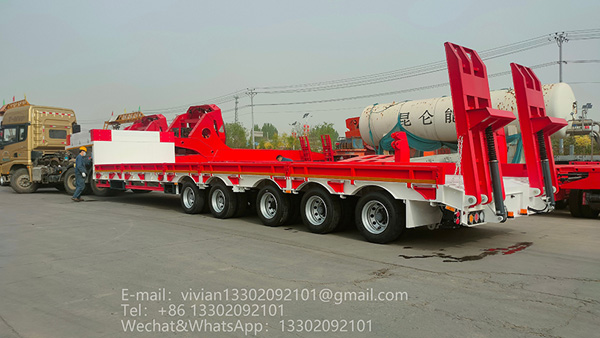

Lowbed Semi Trailer (2 – 7 axles)
The series of GLOBAL TRAILER HOME lowbed trailers includes many different low bed variants for the most different transport challenges. The strengths of the double drop trailers are its payload capacity, the various lowbed possibilities and the agile handling
Lowbed Semi Trailer (7 – 10 axles) hydraulic suspension, hydraulic steering, hydraulic gooseneck Prepared to face every task. Regardless of when you need a versatile vehicle, GLOBAL TRAILER HOME hydraulic semi lowloaders are your first choice. With the same vehicle bodywork, different axle units can provide you with exactly what you require for your applications: low loading height, extraordinary axle compensation or maximum robustness.
Hydraulic Suspension the platform (lifted by hydraulic suspension) can be securely positioned and loaded at different heights without mechanical locking. It enables the loading of gooseneck even for machines with low ground clearance
Telescopic Beam extendable up to 50m with a high payload. economic and flexible solution to a multitude of different transport tasks, such as wind power plants (tower segments, generators, rotor or turbine blades) Hydraulic Gooseneck hydraulic gooseneck enables the automatic load compensation between gooseneck and axles. moreover, it offers the possibility to lift and lower the front area of the loading platform, in order to facilitate the crossing of particularly uneven terrain
Hydraulic Lowbed Trailer
Hydraulic Lowbed Trailer is consist of hydraulic suspension, frame chassis, axle, tire, rim, steering mechanism and lifting mechanism, power pack unit, control box. This lowbed trailer is hydraulic steering and lifting, suspension stroke 600mm. Capacity 36 tons per axle, wheel base 1550mm, width 2990mm, Min Height 770mm. This hydraulic lowbed trailer is also named hydraulic multiaxle, hydraulic platform trailer and modular trailer.
Overview
Combined hydraulic series full trailer is composed by movable end beam, unit vehicle, and longitudinal and cross connection parts. In structure, it adopts the frame of level block and grille single box type main girder, 215/75R17.5 small tyre hydraulic suspension with support at three points or four points; hydraulic full wheel traction steering or control steering and double pipe line full wheel braking. Therefore the trailer has the characteristics of low platform height, equal wheel axle load, small turning radius, good traffic ability at narrow site and convenient reverse. Additionally the height of platform can be adjusted with the certain self-loading and self-unloading ability. When the vehicle runs at up and down slope and incline, the body can be adjusted to ensure the level as far as possible for the purpose of avoiding the danger of turning over when loading the cargo with high center of gravity.
The best advantages of the trailer in this series: the user can carry out the corresponding combination according to the different weight, length and width of cargoes for meeting the transportation requirements as well as reducing transportation cost and shortening transportation cycle meanwhile.
If the movable gooseneck, turntable or concave module specially made by the manufacturer can be equipped, the trailer can be developed into hydraulic semi trailer, movable trailer o
